Sachs 100 cc 3-speed engine spare parts list spare parts catalog
Image may differ in color or layout
Sachs 100 cc 3-speed engine spare parts list spare parts catalog
Item No: A-0168

Sachs 100 cc 3-speed engine spare parts list spare parts catalog

In stock and ready for shipping
€16
Incl. VAT, excl. Shipping*
Condition:
New
Brand:
Hercules, Sachs
Dimensions:
Din A5
Pages:
40 pages
Language:
German
Description

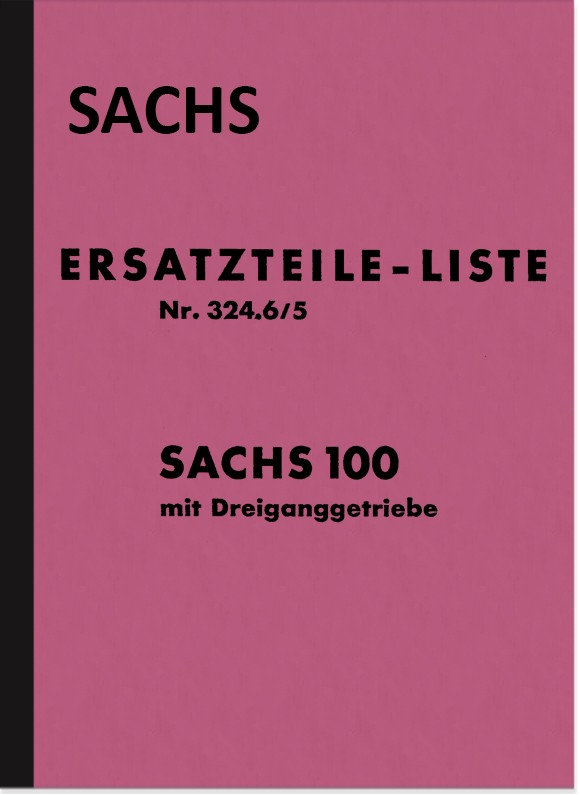

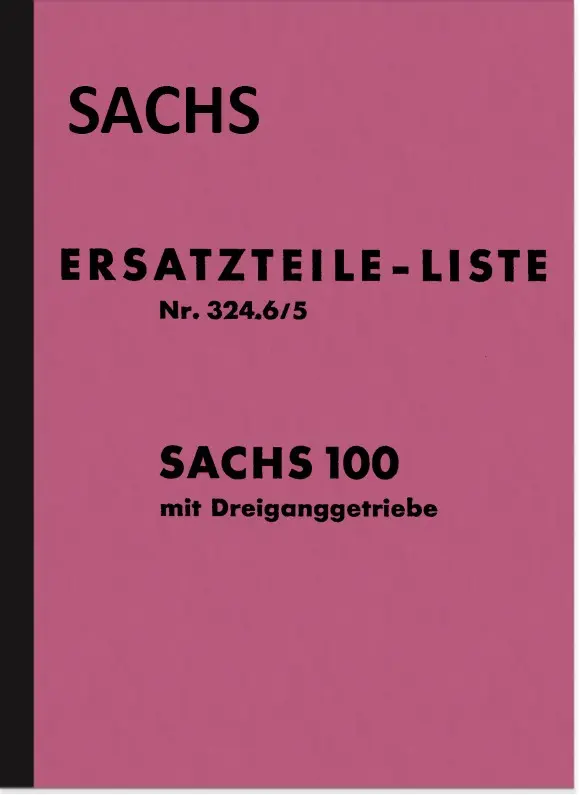

Spare parts list for Sachs 100 ccm 3-speed engine with kick starter and electric starter. Hand and foot shift. Edition 1961.

Engine is also used in Hercules K 100 and K 101.
You will receive a good quality bound book or brochure by postNo PDF, no CD and no loose sheet collection!

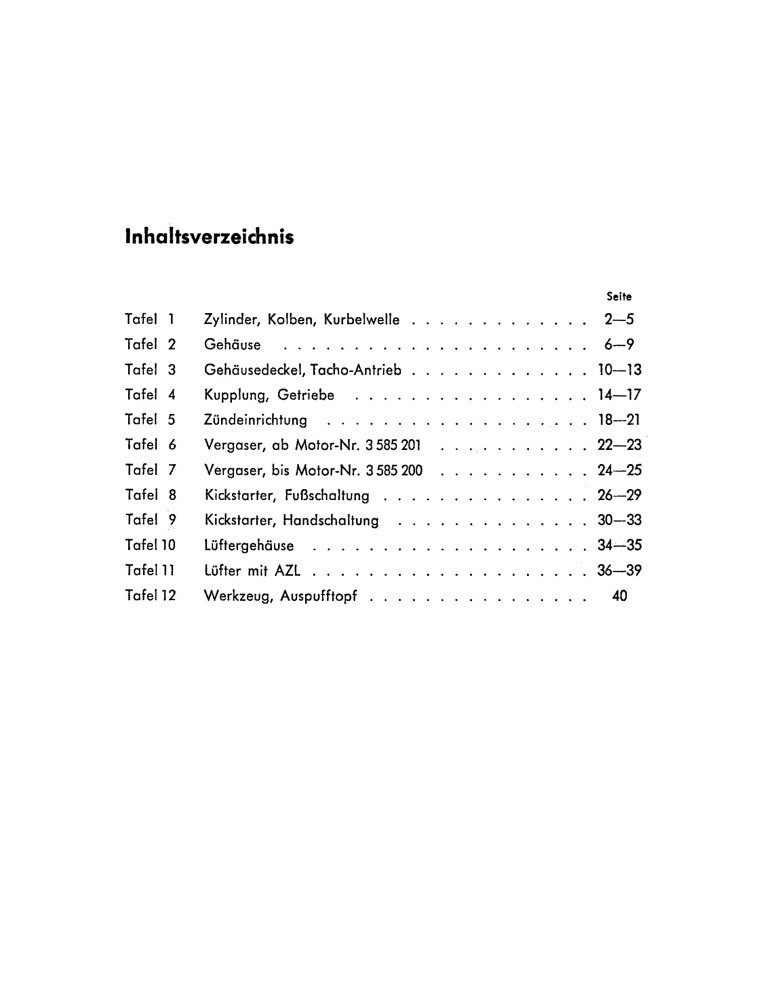

Table of Content
Tafel 1 Zylinder, Kolben, Kurbelwelle
Tafel 2 Gehäuse
Tafel 3 Gehäusedeckel, Tacho-Antrieb
Tafel 4 Kupplung, Getriebe
Tafel 5 Zündeinrichtung
Tafel 6 Vergaser, ab Motor-Nr. 3 585 201
Tafel 7 Vergaser, bis Motor-Nr. 3 585 200
Tafel 8 Kickstarter, Fußschaltung
Tafel 9 Kickstarter, Handschaltung
Tafel 10 Lüftergehäuse
Tafel 11 Lüfter mit AZL
Tafel 12 Werkzeug, Auspufftopf
