Zündapp 200 S 200S 1955 spare parts list spare parts catalog parts catalog

Zündapp 200 S 200S 1955 spare parts list spare parts catalog parts catalog
Image may differ in color or layout
Zündapp 200 S 200S 1955 spare parts list spare parts catalog parts catalog
Item Number: WK-0189
In stock and ready for shipping
€22
Incl. VAT, excl. Shipping
or order directly
Condition:
New
Brand:
Zündapp
Dimensions:
DIN A5
Pages:
80 pages
Description
Spare parts list for the Zündapp 200 S motorcycle from passenger no. 885001. edition June 1955, in German.
You will receive a good quality bound book or brochure by postNo PDF, no CD and no loose sheet collection!

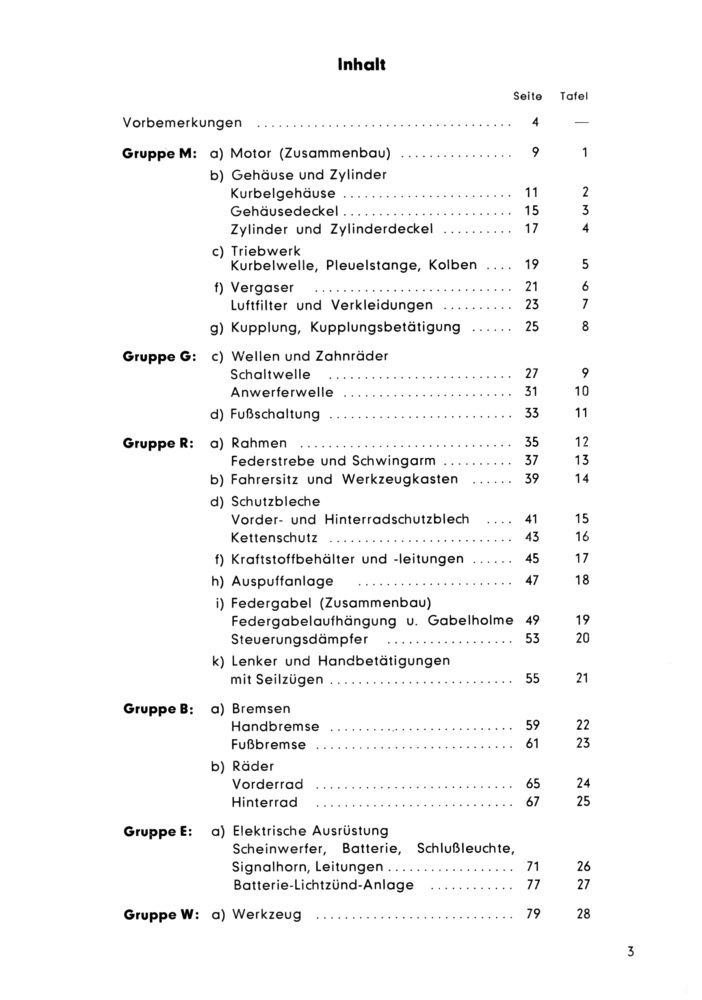

Table of Content
Vorbemerkung

Gruppe M:
a) Motor (Zusammenbau)
b) Gehäuse und Zylinder
- Kurbelgehäuse
- Gehäusedeckel
- Zylinder und Zylinderdeckel
c) Treibwerk
- Kurbelwelle, Pleuelstange, Kolben
f) Vergaser
- Luftfilter und Verkleidungen
g) Kupplung, Kupplungsbetätigung

Gruppe G:
c) Wellen und Zahnräder
- Schaltwelle
- Anwererfwelle
d) Fußschaltung

Gruppe R:
a) Rahmen
- Federstrebe, Schwingarm
b) Federsitz und Werkzeugkasten
d) Schutzbleche
- Vorderrad- und Hinterradschutzblech
- Kettenschutz
f) Kraftstoffbehälter und - leitungen
h) Auspuffanlage
i) Federgabel (Zusammenbau)
- Federgabelaufhängung u. Gabelholme
- Steuerungsdämpfer
k) Lenker und Handbetätigungen mit Seilzügen

Gruppe B:
a) Bremsen
- Handbremse
- Fußbremse
b) Räder
- Vorderrad
- Hinterrad

Gruppe E:
a) Elektrische Ausrüstung
- Scheinwerfer, Batterie, Schlußleuchte, Signalhorn, Leitung
- Batterie-Lichtzünd-Anlage

Gruppe W:
a) Werkzeug
